Care@Home 7000
Control Panel C7000
Features:
Communication channel option:
- Cellular (3G and LTE)
Bluetooth LE for connecting devices.
Two-way audio capability for communications with the monitoring station:
- High quality, long range voice verification
- Ultra-sensitive microphone
Remote management and support capabilities:
- Automatic software upgrade
- Programming and configuration
- Troubleshooting
Safety functionality:
- Onboard emergency SOS functionality
General features:
- Multi language vocal reminders
- LED indications for system status
- Pairing button to easily add system peripherals
CONTROL PANEL C7000

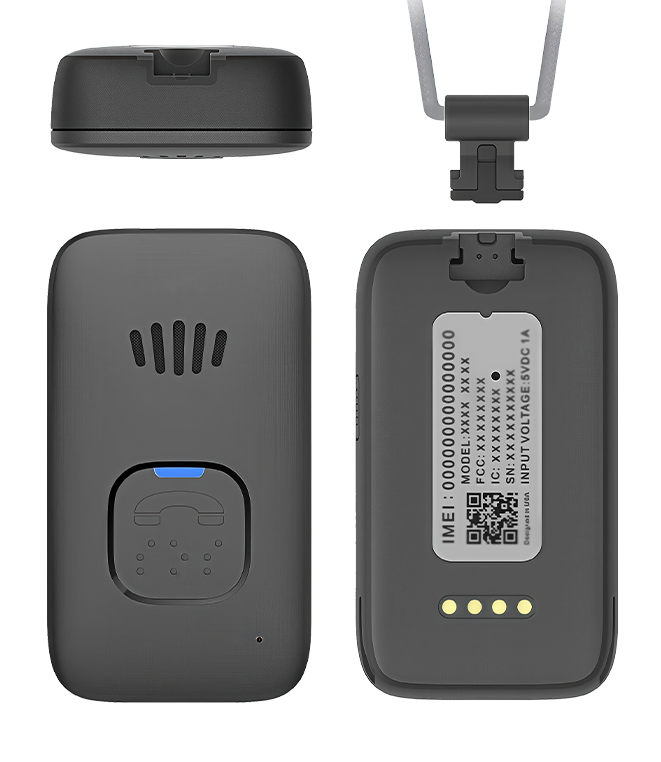

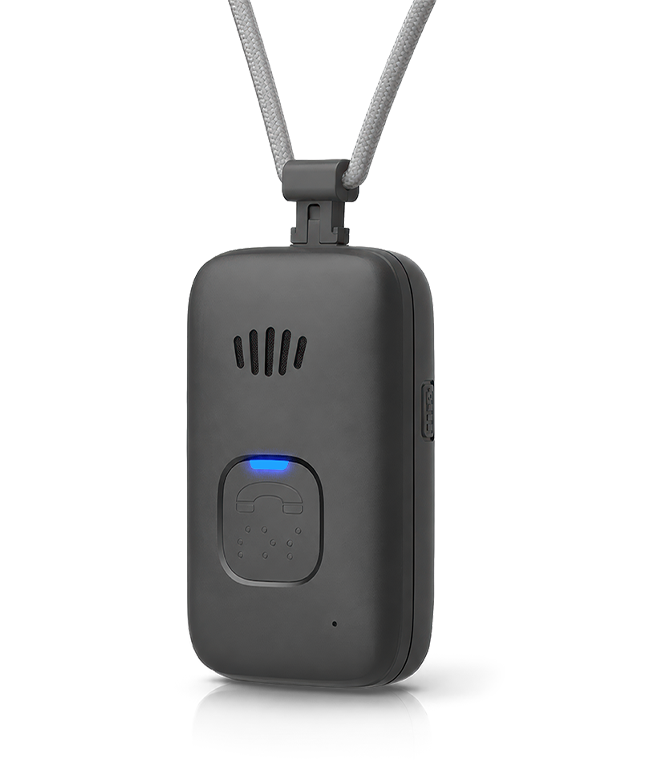

EMERGENCY PENDANT PLUS
End-to-End Senior Care Solutions
The Control Panel C7000 Series is the central communication gateway for managing and communicating between the system peripherals, the Care@Home™ cloud, the monitoring station, and the end-user applications.
The Care@Home™ Series features a prominent onboard EMERGENCY CALL button as well as a LTE cellular module.
Care@Home™ enables families to be confident that their loved ones are cared for, while endusers are enabled to maintain their independent lifestyle. The award-winning Care@Home Multi-Service Platform is an Aging-in-Place product suite that offers seamless home care monitoring indoors and outdoors, allowing independence for seniors and peace of mind to their loved ones.
Care@Home™ Activity Monitoring
Using non-intrusive sensing and detection devices and dedicated software, the system can follow a senior’s daily activities and build a profile of them, allowing unusual activity or inactivity to be highlighted. Using the profile and continuing sensor readings, Care@Home™ identifies when there may be a need for assistance, and triggers an alarm to a monitoring center, family and caregivers.
Care@Home™ Activity Monitoring also offers the possibility to set Smart Rules to receive notifications of specific behavior of interest according to user defined parameters that are not dependent on regular patterns.
Sensors & Detectors
Communicator 2.0
A wireless, smart emergency response device with Intelligent Voice Activation™ technology, integrated into the Care@Home™ product suite solution, providing an added layer of care by allowing residents to call for help when unable to press their panic button.
Features:
Intelligent Voice Actiovation™ (IVA):
an always-active technology that recognizes preset vocal commands which trigger specified actions
Voice extender
feature allows the HSP or caregiver to communicate in full duplex with the resident when a call for help is made
Stationary panic button
and optional fixed pull cord
Extreme temperature detection
LED indications
for emergency and system status
Water resistant
for installation in shower or bathing areas
Supports automatic over-the-air software
(RSU) programming and configuration upgrade
Installation
using a desktop mount or wall mount using mounting tape or screws
Accessories
External pull cord trigger Desktop mount
MDsense Radar
Fall Detector
A Better Way To Detect Seniors Falls. Complete indoor fall detection. Using an advanced fall detection algorithm with state-of-the-art technology, this wireless radar-based fall sensor does not require the resident to wear any detection device. When integrated with Care@Home™, the MDsense can detect a resident's fall regardless of whether the room is brightly lit or completely dark.
Smoke Detector
Wireless, integrated, smoke detector for Care@Home™.
Features:
- Photoelectric detection technology
- Local temperature measurement and the Extreme temperature Alert
- Support of automatic over-the-air software programming and configuration upgrade (RSU)
- Standalone operation mode
- Test/Mute button
- Siren emits a sound of 85 dBA (from 3m)
- Visual indication with tri-color LED where: Red: for smoke alarm; Green: for power status; Yellow: for low battery/chamber degradation.
Specifications
Part Number
ES7502HC
Weight
1.23 lb. (0.56 kg), including adapter and battery
Peripheral Devices
Up to 64 peripheral devices can be assigned.
Dimensions (H x W x D)
152 x 152 x 71mm - 6 x 6 x 2.8 in.
Main Power
100-240 VAC, 50/60 Hz, 500 mA
Backup Battery
One Li-Po, 3.7 V, 1400 mAh (North America) Rechargeable with three-year battery life Provides up to 24 hours of continuous operation
Frequency
916.5 MHz
Communication Channels
Cellular
Color
White and gray
Operating temperature
32°F to 120°F (0°C to 49°C)
